Enerworks Product Lines

Whether your application is residential, commercial or industrial, Enerworks can offer an appropriately-sized, integrated solar water heating solution that has been designed, top to bottom, specifically for your needs. Enerworks offers the Spectrum line of solar water heating products, suitable for applications in all climates, as well as the Enersol line of solar pool heating systems and accessories.

The Enerworks HeatSafe Collector, suitable for residential and commercial applications, features patented overheat-protection, countering the stagnation issue that plagued the solar water heating industry in its early days. The only flat-plate collector with such a feature, this overheat protection ensures that excess heat is safely vented when hot water usage is low or non-existent, such as when homeowners are on vacation.

Residential Product Lines back to top

Our residential systems are the first systems to meet CSA international standards. Containing several unique and patented features, Enerworks solar systems complement existing electric, natural gas, propane, oil or on-demand water heating systems and provide clean energy and a real reduction in energy costs. Next to space heating and cooling, water heating is the single largest demand on home energy consumption.

The Enerworks Spectrum Line of Systems and Solutions

Designed for use in all climates, conditions and geographies, the freeze-protected Spectrum residential and commercial water heating systems have been installed from Alaska to Florida, Arizona to Maine. Top to bottom, these residential, commercial and industrial solutions are designed and optimized to efficiently meet the specific needs of the application.

The Enerworks Spectrum Pre-Heat System

Water tank and Spectrum Pre-Heat System

Used in residential and small commercial applications, the Enerworks Spectrum Pre-Heat System is a reliable, year-round

The Spectrum Pre-Heat System includes one to four attractive Enerworks HeatSafe Collectors which resemble skylights and can be roof-, wall- or rack-mounted to ensure optimal solar energy capture. The freeze-protected fluid in the collectors channels the heat to the Enerworks Energy Pack, attached to the solar storage tank, typically located in your utility room. Within the Energy Pack, the heat is transferred to your water, ready to meet your hot water needs. The Enerworks Spectrum Pre-Heat System can also be configured to provide secondary applications such as pool heating and space heating.solution, offsetting greenhouse gas emissions and saving money on your energy bill. The Spectrum Pre-Heat System uses free solar energy to heat water, becoming your primary source of hot water. If necessary, your existing water heater heats the water during periods of low solar radiation or at night, so you are never without hot water.

Spectrum Preheat Appliance

Spectrum Preheat Appliance

The Enerworks Spectrum Single Tank SystemSingle Spectrum connection to water heater tank

Used in residential and small commercial applications, the Enerworks Spectrum Single Tank System is the perfect solution where floor space is at a premium. The Spectrum Single Tank System is reliable year-round and comes with one or two Enerworks HeatSafe collectors which capture the free solar energy to heat your water. This hot water is stored in a single tank which combines solar storage and electric auxiliary in one space-saving unit. The electric auxiliary is required only when the available solar energy is not sufficient to meet the demand, again ensuring that you are never without hot water.

Enerworks HeatSafe Collectors resemble skylights and can be roof-, wall- or rack-mounted to ensure optimal solar energy capture. The freeze-protected fluid in the collectors channels the heat to the Enerworks Energy Pack attached to the storage tank. Within the Energy Pack, the heat is transferred to your water, ready to meet your hot water needs. The Enerworks Spectrum Single Tank System can also be configured to provide secondary applications such as pool heating and space heating.

How Spectrum Single Tank Appliance works

Spectrum Single Tank Appliance “How It Works”

Spectrum Single Tank Appliance Fact Sheet

Spectrum Single Tank Appliance Fact Sheet

The Enerworks HeatSafe Collectors
For use with Spectrum and Focus Systems

The Enerworks HeatSafe Collector provides patented protection against overheating and stagnation. Used with Spectrum and Focus Pre-Heat and Single Tank System in residential and small commercial applications, it is the perfect solution for applications where periods of low or no hot water usage may be experienced. The patented overheat-protection mechanism allows excess hot air to vent, preventing overheating and the damage it can cause to the collector and fluid.

HeatSafe Collectors are low profile and attractive, resembling skylights, and can be roof-, wall- or rack-mounted. They feature a high performance selective coating to maximize absorption of the solar radiation.

  • 4’ x 8’ (1.219m x 2.438m) , 3” (7.6 cm) deep, 110 lb (50 kg) each
  • Patented Collector Temperature Control, U.S. Patent #7,143,762 B2
  • Frame & Flashing: Galvalume™ steel satin finish, neutral dark color
  • Absorber: Copper tube on aluminum sheet; absorptance of 94% (± 2%) and emittance of 5% (± 2%)
  • Glazing: Low-iron, patterned, tempered glass with side edge guard
  • Mounted with a proprietary bracket system that is flexible and safe
  • Optional Leaf-Guard available for applications where leaves or other debris could collect under collectors

Heat Safe Collector

Heat Safe Collector

* Patented Collector Stagnation Temperature
Control US Patent #7,143,762,B2

The Enerworks Energy Pack
For use with Spectrum SystemsClose up of Enerworks Energy Pack

Part of the Enerworks Spectrum and Focus Pre-Heat and Single Tank Systems, the Enerworks Energy Pack is attached to the solar storage tank and contains the major components of the micro-flow solar water heating system. Available in models sized to work with one to four collector Spectrum and one to two collector Focus Systems, the Energy Pack contains the heat exchanger, pump, expansion tank, flow/temperature sensor and motor. The heat exchanger, available in single wall or double wall, features a unique and patented back flush valve which automatically removes mineral scaling on the heat exchanger’s internal surfaces.

* Patented Passive Anti-Fouling Protection.
US Patent # 6,827,091B2

Commercial Product Line back to top

For commercial and industrial applications, Enerworks is at the forefront of integrated solar thermal solutions, working with local partners to design, install, commission and maintain solar thermal heating and cooling systems for a full gamut of commercial, industrial and large-scale residential applications.

Our commercial solutions include the award-winning Enerworks Energy Terminal, a unique integration of the key components of the system into one compact, pre-engineered housing.

The Enerworks Premier Efficiency Collector

For use with Spectrum and Focus Commercial SolutionsEnerworks Premier Efficiency Collector

Rated by the ecoEnergy Program as the highest efficiency flat-plate collector on the market, the Enerworks Premier Efficiency Collector is the optimal solution for commercial and industrial applications requiring year-round water heating. Suitable for projects of varying sizes, the Premier Efficiency Collectors are installed in repeatable modules of up to ten collectors across and one to two collectors high in flat-roof, sloped-roof and wall-hanging configurations.

  • 46.25” x 96.25” (117.5 cm x 244.5 cm) , 3.25” (8.3 cm) deep, 110 lb (50 kg) each
  • Frame & Flashing: Galvalume™ steel satin finish, neutral dark color
  • Absorber: Copper tube on aluminum sheet; absorptance of 94% (± 2%) and emittance of 5% (± 2%)
  • Glazing: Low-iron, patterned, tempered glass with side edge guard
  • Mounted with a proprietary “hook” bracket system that is flexible and safeThe hook bracket system
  • For applications requiring water temperatures between 104 ˚F and 158 ˚F (40 ˚C and 70 ˚C) and daily volumes between 105 and 20,000 US gallons (400 litres and 75,000 litres)
  • Solutions can be customized to target temperatures up to 220 ˚F (104 ˚C)

Premier Collector

Premier Collector

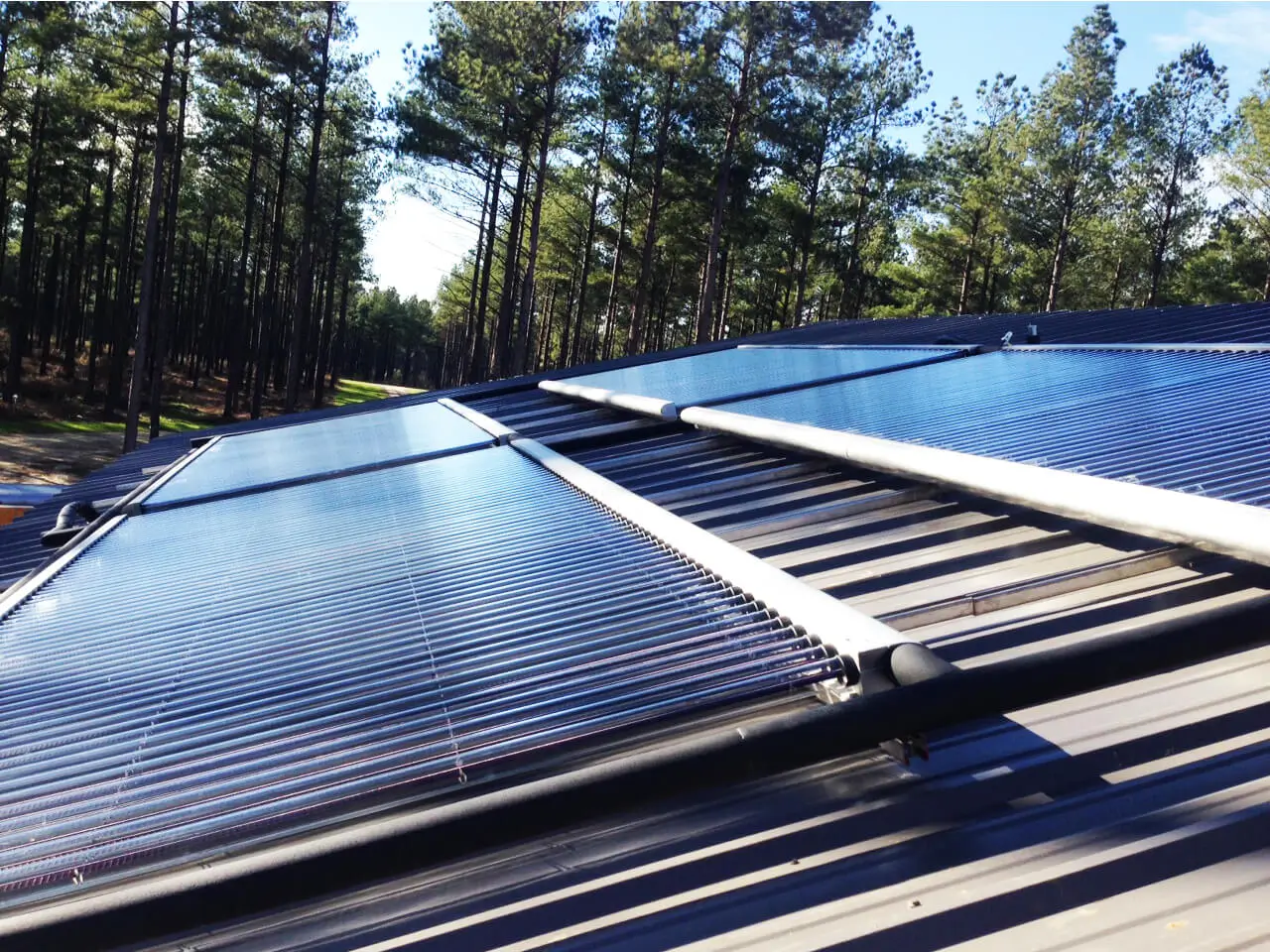

Vacuum Tube CollectorVacuum Tube Collectors

Enerworks uses NARVA vacuum tubes made in Germany. Due to NARVA’s 40-years of experience in the field of glass manufacturing and processing, their extensive knowledge about coating and vacuum processes, as well as experience in the field of glassmetal-compounds, they have been able to realize the production and process for creating top quality products very quickly.

The patented glassmetal-compound between the tubes’ sheathing and absorber makes the product highly robust and durable.

Through the coating with nanoparticles, the transparency of the glass is considerably improved and with that, the effectiveness of the tubes. The certified production in Brand-Erbisdorf includes all the essential production stages and ensures the highest quality possible.

The tube is made at the company’s own glass factory; the prefabrication manufactures the copper absorber units. The assembly of both parts for the finished product takes place at their state of the art manufacturing plant which was put into operation in 2007.

The Enerworks, S-Power Vacuum Tube Collectors were used at the state of the art Solar Thermal system at Oxford Gardens, Woodstock Ontario. The solar thermal energy from the system was used to heat the domestic water, space heating, pool heating, and drive the chiller in the air conditioning system.



The Enerworks Solar Energy Terminal
Enerworks Solar Energy Terminal AAA081-R1-11

For larger commercial and industrial applications, Enerworks has engineered the Enerworks Solar Energy Terminal, which integrates the key components of a solar thermal system. An integrated pump, heat exchanger and an intelligent control system are all contained in a compact housing. This pre-engineered unit eliminates the need to procure and assemble components from a variety of sources and simplifies the installation. Pre-assembled and factory-tested, the Solar Energy Terminal contains multi-speed pumps and a pre-programmed controller which enables internet communication and set-point customization for each installation, optimizing performance for the specific site conditions and ensuring cost-effective operation.

SET Brochure

Enersol Solar Pool Heatingback to top

When considering a heat source for your pool, you only have to look up to realize the primary benefit of solar heat – it’s free heat from the sun! With uncertainty and rising costs in the gas and power markets, the price for solar will not change. It will be free for life. Using your existing pump and filter, our easy-to-install solar pool heater ensures warmer pool temperatures, no monthly heating bills, and is proven to be the most cost effective way to heat your pool. Get the most out of your pool by extending the swimming season and have more fun–courtesy of the sun!

The Enersol ‘slip & clip’ modular design allows for custom sizing, promotes roof health and resists wind lift.  The versatility of the panels is shown here, incorporating small roof vents into the system. The system is easily expanded, if more panels are required. Repair, if necessary, is easy

For complete details on Enersol Solar Products including sizing guide, part description and  installation instructions please visit the dedicated Enersol Solar Products website.

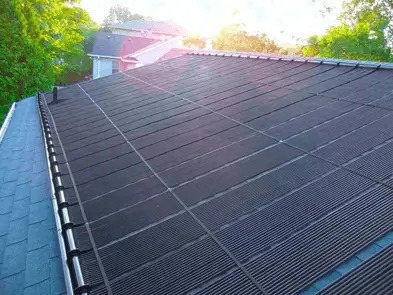

A sample installation of the Enersol solar pool panels on a sloped asphalt roof

Innovations back to top

Since its inception, Enerworks has brought innovative solar energy solutions to market – from award-winning, integrated approaches to increased efficiency and reliability, from cost reduction to simplified installation. Enerworks continues to invest in research and development, designing cost-effective, high efficiency solar water heating solutions for residential, commercial and industrial applications.

CERTIFICATIONS

Residential Product Certifications:

Additional Certifications
Master Contract CSA # 232023
Collector Certification: SRCC 100-2005-014A

Various System configurations are certified under SRCC OG-300; please refer to SRCC listings.

Commercial Product Certifications:

AWARDS

2009 – Enerworks Named an Emerging Cleantech Leader
Enerworks was named among the Next 10 Emerging Cleantech Leaders by Corporate Knights, an independent Canadian-based media company focused on promoting and reinforcing sustainable development in Canada. Corporate Knights annually compiles the Corporate Knights Cleantech 10™ and the Next 10 Emerging Cleantech Leaders, together with Cleantech Group LLC, the leading provider of Cleantech indices and information globally.

2008 Energy-TV Awards

Top Energy Efficient Product – Enerworks Inc. – Solar Water Heating

PCBC Cool Products Award 2008 – Consumer Category – Enerworks Space-Saver Residential Solar Water Heating System.

Enerworks Solar Energy Terminal Wins Innovative Product & Technology Award
The Toronto Construction Association and Construct Canada 2007 Committee announced today that Enerworks’ new Solar Energy Terminal (SEU) for commercial and industrial solar thermal applications has been awarded the Temple W. Harris Innovative Product and Technology Award (TIPTA).

Enerworks solar thermal technology a part of energy-efficient, award-winning home
Ontario’s “most outstanding production-built home” – according to the Ontario Home Builder Association – comes equipped with the Enerworks solar water heating System, which includes solar collector panels and energy pack.

2005 EnerQuality Excellence Awards
Teixeira home wins award with the Enerworks Solar Water Heating System supplying hot water for household use and in-floor radiant heating.
